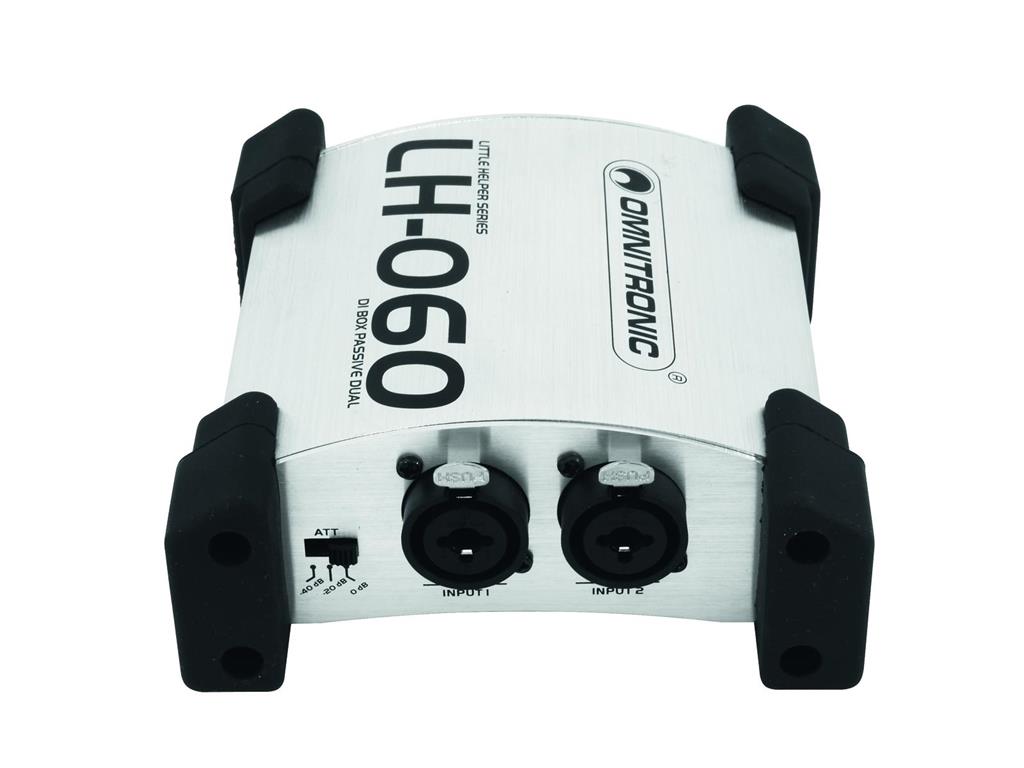

2 high-impedance signal inputs via combo connectors (XLR/6.3 mm jack)

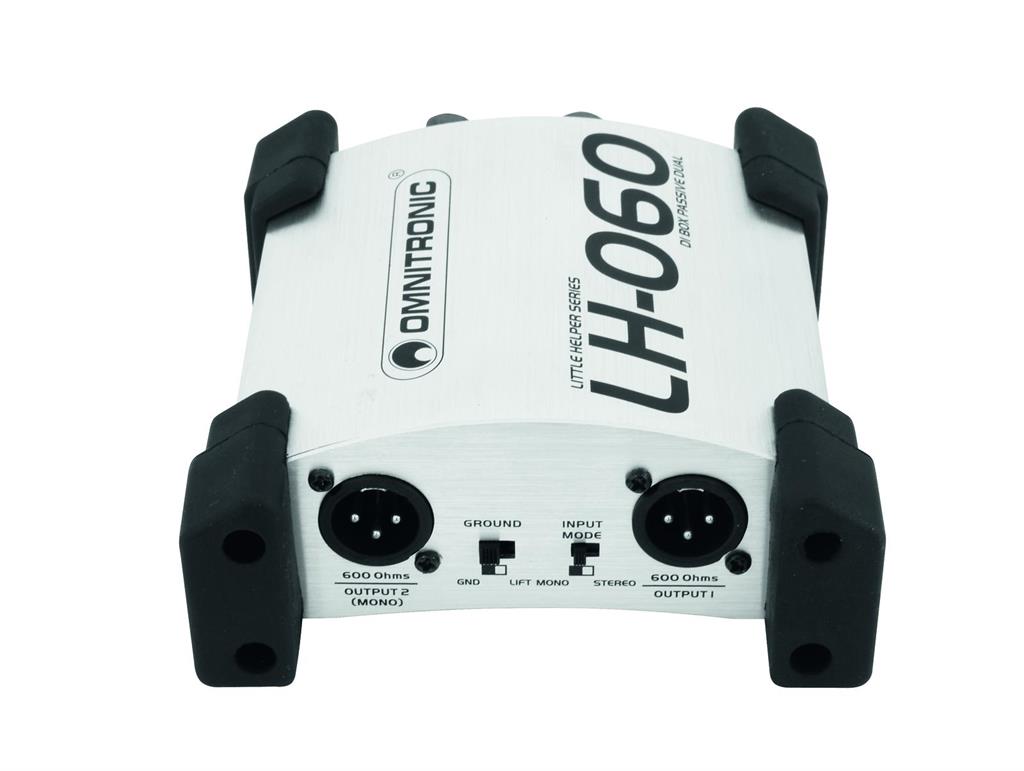

2 low-impedance XLR outputs
Converts 2 separate unbalanced line inputs (e.g. instruments) into 2 balanced XLR outputs, for connecting a mixer
Switchable to split mode (input 2 routes the signal to both outputs)
Switchable input attenuation: 0 dB, -20 dB, -40 dB
Ground-lift switch eliminates signal interference and ground loop problems

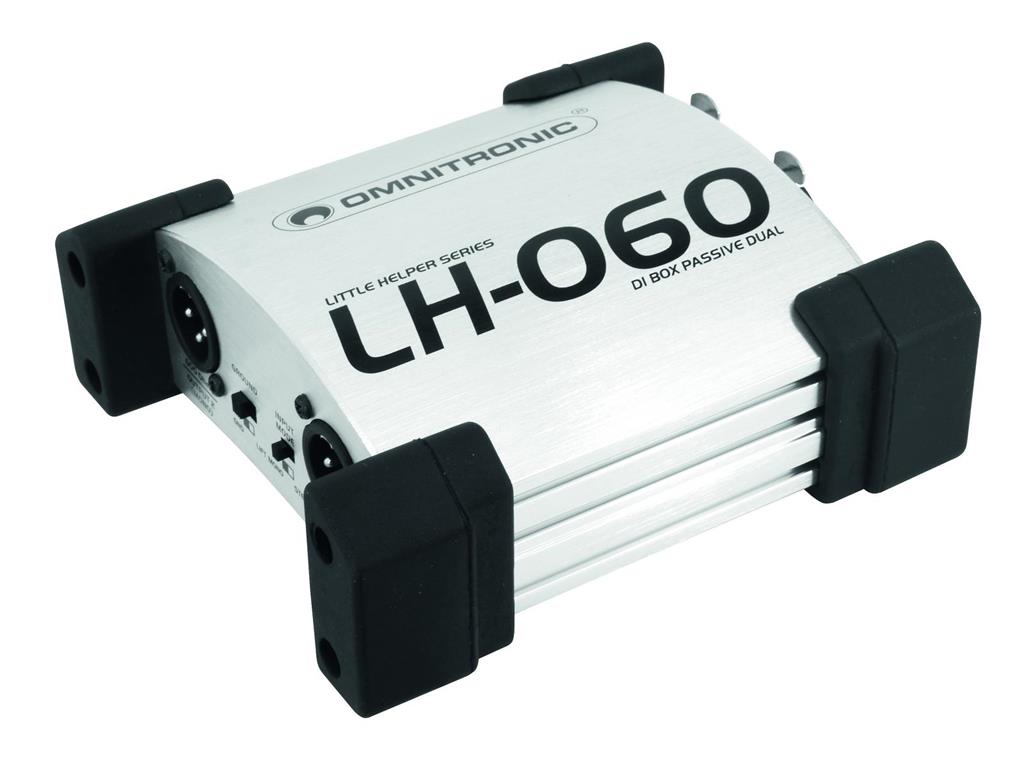

Modern convex housing design with rubber corners for safe positioning
Stackable
Cables can be routed under the housing
Frequency range:15 Hz - 30 kHz Input impedance:50 kohms Output impedance:600 ohms Maximum output level:6 dBu Dynamic range:>95 dB Input connectors:2 x combo XLR/6.3 mm jack Output connectors:2 x XLR, bal. Dimensions:150 x 130 x 60 mm Weight:0.5 kg
